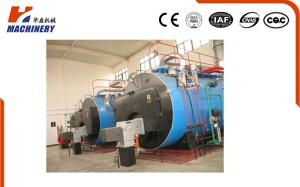

Industrial Boiler Horizontal Fire Tube Structure heat conduction oil Boiler
Description:
The boiler chooses the advanced wet back three-pass horizontal fire tube structure and the tube sheet anti-crack patent. It has the high efficiency & energy conservation economizer, condenser and oversea burner with better performance. This type of boiler has the characteristics of compact structure, good looking and full-automatic computer control.
Applications
- Three-return structure: adopts the international popular shell-type three-return ,full wet back structure, combustion chamber large volume design, to ensure the combustion more fully. Fuel combustion in the furnace by micro-positive pressure, high temperature smoke gas along the boiler furnace go backward through reverse flow combustor turn 180°into the first smoke flue tube bundle, pass the oppressive front smoke box then turn 180°into the second smoke flue tube bundle, after the convection heat transfer injection into the atmosphere.
- The corrugated furnace: the combustion chamber adopt full corrugated furnace structure, not only strengthen the flue gas disturbance, but also increased the radiation transfer area; not only increase the rigidity of the furnace, but also effectively weaken expansion stress of furnace; both enhance the heat transfer effect, and promote the fuel combustion in the furnace.
- The unique pipe and tube sheet welding technology: adopts the first pre-expansion and then all welding, and then expanded connection advanced technology. Both to prevent the pipe gap corrosion, and enhance the welding strength; adopts the high heat transfer coefficient of the screw smoke tube, to strength the convective heat transfer effect, reduce the exhaust gas temperature, improve the boiler thermal efficiency.
- Symmetrical activities hinge joint front, back smoke door: easy to open, convenient for repair, clean up.
- Wet back structure: the boiler use wet back structure, full pull side butt weld,reliable performance, low maintenance costs.
- Rear-view device: rear view device design, easy to observe the combustion situation.
- Security: design over-temperature, overpressure, water-shortage, leakage detecting, flameout and other protection functions, boiler operation safe and reliable.
Why Choose Us?
- We will reply your inquiry in 7*24 hours.
- Experienced staffs will answer all your questions in fluent and professional English.
- Customized design is available.
Guarantee: One-year warranty and full-life service for all of our steam boilers;
A full range of original spare parts are available for all YINCHEN boilers
FAQ
Q1. You are trading company or manufacturer?
----- We are manufacturer, major in short cycle press for 28 years OEM.
Q2. Can I send samples for testing?
----- If you customized hot press in our factory, after receiving down payment, we can make testing for you .
Q3. Can you accept OEM or ODM?
----- Of course, any kind and color can be provided according to your requirements.
Q4. Have you ever exported to foreign countries?
----- We have exported short cycle press to Russia, India, Vietnam, Thailand, Dubai and so on.
Q5.What is your delivery time?
-----It depends on your order item and quantity,35-70 days accordingly
Q6:Is the price negotiable?
-----Yes,the price is negotiable.The price we give is based on the cost and it is quite reasonable.Normally price depend on your quantity and quality demand.
